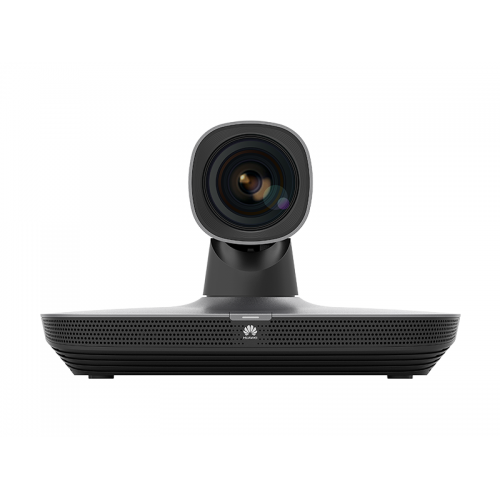

Model: TE20-5X-W-00
This all-in-one HD videoconferencing endpoint combines innovative features and cost-effective design. It is an ideal choice for small- and medium-sized conference rooms.
Product Characteristics
All-in-one design, 5 minutes to set up
Compact system with built-in camera and microphone; simplified interface for easy connections and installation
USB configuration wizard for quick self-service “plug-and-play”
Multiple installation methods: On top of TV, mounted on wall or ceiling
Unique, fan-shaped interactive interface
Tiered menu and user-friendly button design that users can operate effortlessly
New technology for superior experience over low bandwidth
Video Motion Enhancement (VME) combined with image pre- and post-processing of images helps the TE20 adapt to different lighting conditions and improve video quality
H.264 HP technology enhances image compression ratio and saves 50 percent of bandwidth
User experience improved by state-of the-art audio and video technologies
5x/12x optical zoom camera with a maximum 80° wide-angle, 1080p HD video
New STARVIS imaging technology enables clear images under low light conditions
Microphone voice pickup radius of 6 meters, AAC-LD wideband audio; hi-fi audio enhanced by Acoustic Echo Cancellation (AEC) and Automatic Noise Suppression (ANS) technologies
Easy access with built-in 2.4G/5G dual-frequency Wi-Fi
Easy share content on the PC, smartphone or tablet without cables through the AirPresence
Network adaptability and security mechanism
Patented Super Error Concealment (SEC) ensures high-quality video experience even with 20 percent packet loss
H.460 standard guarantees secure firewall traversal
H.235 media stream and signaling, SRTP, TLS, and HTTPS encryption
Open, converged, and extensive system integration
Interworking with mainstream third-party cloud platforms and auto-configuration by service provisioning from the Videxio platform
Seamless integration with IMS
Interoperable with standard endpoints and infrastructures from mainstream vendors
Abundant API interfaces, implementing flexible integration with third-party service platforms
Product specifications
Package includes
| HD codec, built-in camera and microphone, cables, remote control, and power Optional: VPM220 omni-directional microphone |
||
| Standards & Protocols | ||
| Standards and Protocols | ITU-T H.323, IETF SIP | |
| Video Standards & Protocols | H.264 BP, H.264 HP | |
| Audio Standards & Protocols | G.711A, G.711U, G.722, G.722.1C*, G.729A, and AAC-LD single-channel | |
| Dual Stream | ITU-T H.239, BFCP | |
| Other Standards | H.235, H.245, H.460, DTMF, and RFC2833 | |
| Network Standards & Protocols | FTP, FTPS, DHCP, DNS, SNMP, Telnet, SSH, HTTP, HTTPS, SNTP, RTP, RTCP, and TR-069 | |
| Wi-Fi Protocols | 802.11a/b/g/n, WPA, and WPA2 | |
| Video Specifications and Features | ||
| People Video Resolution | 1080p30 from 512 kbit/s 720p60 from 512 kbit/s 720p30 from 384 kbit/s 4SIF/4CIF from 128 kbit/s SIF/CIF from 64 kbit/s |
|
| Content Video Resolution | Input: HDMI: 640 x 480 @ 60/72/75/85 fps; 800 x 600 @ 56/60/72/75/85 fps; 1,024 x 768 @ 60/70/75/85 fps; 1,152 x 864 @ 60 fps; 1,280 x 600 @ 60 fps; 1,280 x 768 @ 60 fps; 1,280 x 800 @ 60 fps; 1,366 x 768 @ 60 fps; 1,360 x 768 @ 60 fps; 720p @ 50/60 fps; 1,080p @ 24/25/30 fps VGA: 640 x 480 @ 60/72/75/85 fps; 800 x 600 @ 56/60/72/75/85 fps; 1,024 x 768 @ 60/70/75/85 fps; 1,152 x 864 @ 60 fps; 1,280 x 600 @ 60 fps; 1,280 x 768 @ 60 fps; 1,280 x 800 @ 60 fps; 1,366 x 768 @ 60 fps; 1,360 x 768 @ 60 fps; 720p @ 60 fps Coding/Decoding resolution: 800 x 600; 1,024 x 768; 1,280 x 720 Output: 1080p @ 24/25/30/50/60 fps |
|
| Dual Stream | 1080p + 720p; Dual 720p @ 30 fps | |
| 1080p HD Camera | Built-in camera 1080p 2.13-megapixel 1/2.8-inch CMOS Zoom: 5x/12x optical Maximum horizontal angle: 80° (5x optical zoom)/ 72° (12x optical zoom) |
Panning/Tilting angle: +/- 90° pan, +5/-25° tilt Automatic White Balance (AWB) Automatic Exposure (AE) Automatic Focus (AF) Ceiling-mounted |
| Other Video Features | Picture-in-Picture (PIP) and Picture-outside-Picture (POP) | |
| Audio Specifications and Features | ||
| Audio Features | AAC-LD Acoustic Echo Cancellation (AEC) Automatic Noise Suppression (ANS) Automatic Gain Control (AGC) Voice Clear Audio Enhancer Lip Synchronization |
|
| Security and Stability | ||
| Network | Super Error Concealment (SEC) Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC) |
|
| Security | H.235 signaling and media stream encryption TLS and SRTP for SIP signaling and media stream encryption Conference access password, conference control password, and administrator password SSH/HTTPS, dual stream encryption |
|
| Firewall Traversal | H.460 firewall traversal | |
| Bandwidth | ||
| IP | 64 kbit/s to 4 Mbit/s | |
| Interfaces | ||
| Audio Inputs | 1 x HDMI, 1 x HD-AI (stereo, connects to microphone array ) | |
| Audio Outputs | 1 x 3.5 mm line-out jack, 2 x HDMI | |
| Video Inputs | 1 x VGA, 1 x HDMI, and 1 x Built-in Camera | |
| Video Outputs | 2 x HDMI | |
| USB Interfaces | 1 x USB 2.0 Host | |
| Network Interfaces | IP: 1 x RJ45 (10/100/1,000 M Base-T) Wireless: Built-in Wi-Fi |
|
| Application Features | ||
| Languages | Simplified Chinese, English, French, German, Spanish, and Japanese | |
| Special Features | Web-based, RC conference management 16:9 and 4:3 mixed display PIP: 1/16 picture size, optional position IPv6/IPv4 Dual-frequency Wi-Fi |
Split output: Bi-screen and tri-screen display Upside-down mounting Installation from a USB disk, plug-and-play LDAP/Network address book Interconnection with third-party cloud platforms Hybrid with IMS network Conference control using SIP |
| Optional | ||
| Accessory | VPM220 microphone | |
| Maintenance Management | ||
| Maintain Methods | Remote control: Simple buttons, and flat interactive interface Endpoints Network Management: SNMP Web security management: Embedded Web server, graphical maintenance, and diagnosis Command line mode: Telnet/SSH |
|
| Maintenance Functions | Auto sleep, wake-up by remote control or remote module Event log record, query, display and export query results Default settings restoration Local and remote loopback Test signals: Providing sound test and standard test stripes |
|
| Physical Characteristics | ||
| Dimension | Codec dimensions: 249 mm x 136 mm x 152 mm Package dimensions: 375 mm x 230 mm x 215 mm Net weight: 1.6 kg Package weight: 4.1 kg (5x optical zoom), 4.2 kg (12x optical zoom) |
|
| Electrical | Working voltage: 100V AC to 240V AC, 12V DC Working frequency: 50 Hz to 60 Hz Power consumption: 25W |
|
| Environmental Specifications | Operating temperature: 0ºC to 40ºC Non-operating temperature: -40ºC to -70ºC Operating humidity: 10% to 80% Non-operating humidity (non-condensing): 0% to 95% Peripheral noise: < 46 dBA SPL Lowest luminance: 7 lux Recommended luminance: > 300 lux |
|
| Approval and Compliance | CCC, CE (RoHS, REACH), WEEE, UL, and FCC, IC, VCCI, RCM, and Multi-Country Certificate | |
