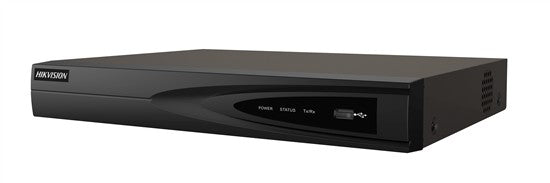

DS-7600NI-K1/P(B) Embedded Plug & Play 4K NVR

DS-7600NI-K1/P(B) Embedded Plug & Play 4K NVR

Hikvision

• Third-party network cameras supported

• Up to 8 Megapixels resolution recording

• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution

• 1 self-adaptive 10/100/1000 Mbps network interface

• Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized

• Support various VCA detection alarm and VCA search

• Support H.265+/H.265/H.264+/H.264/MPEG4 video formats

Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 8-ch
Network
Incoming bandwidth: 80Mbps
Outgoing bandwidth: 80Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability: 1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
POE
Supported Standard: AF and AT
Interface: 4 independent 10 /100 Mbps PoE
Ethernet interfaces
Max. Power: 75W
General
Power Supply: 48 VDC
Consumption(without hard disk and POE): ≤ 10 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD): ≤ 1 kg (2.2 lb)
