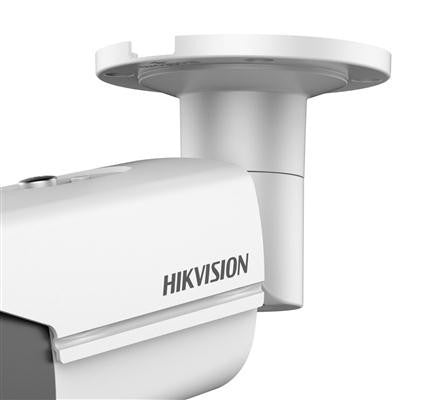

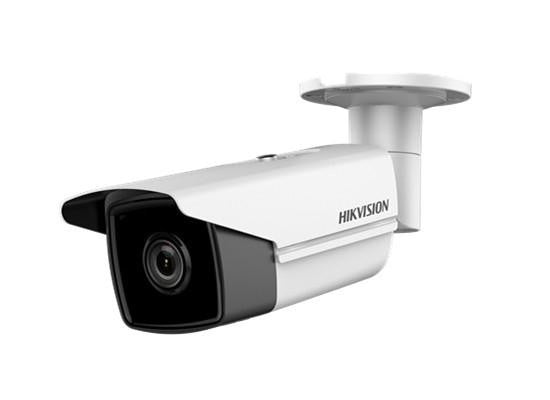

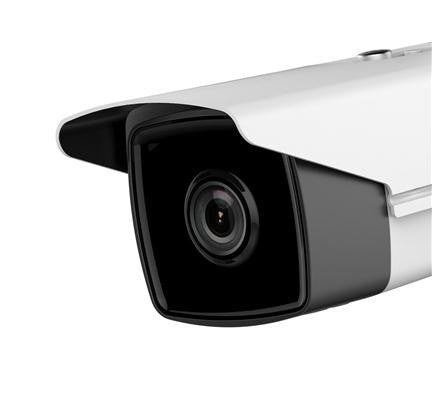

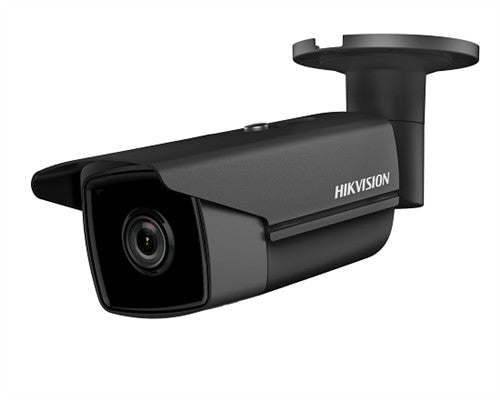

DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera
DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera
DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera
DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera
DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera

DS-2CD2T45FWD-I5/I8 4 MP IR Fixed Bullet Network Camera

Hikvision

4 MP



• 1/2.5" Progressive Scan CMOS

 • 2688 × 1520 @30fps

 • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens

 • H.265, H.265+, H.264+, H.264

 • 4 Behavior analyses

 • 120dB WDR

 • Powered by Darkfighter

 • BLC/3D DNR/ROI/HLC

 • IR range: 50m, 80m, optional

 • Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB

 • IP67



Camera
Image Sensor: 1/2.5" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: I5:
12 VDC, 0.7 A, max. 7.5 W
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W
I8:
12 VDC, 1 A, max: 11.5 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Weather Proof: IP67
IR Range: -I5: up to 50 m; -I8: up to 80 m
Dimensions: Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8")
Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight: Camera: 1200 g (2.7 lb.)
