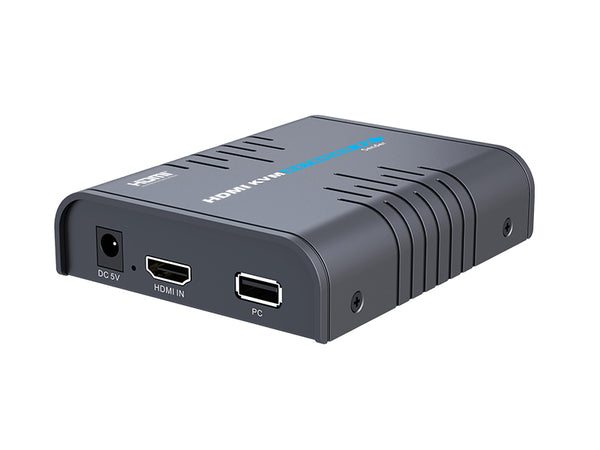

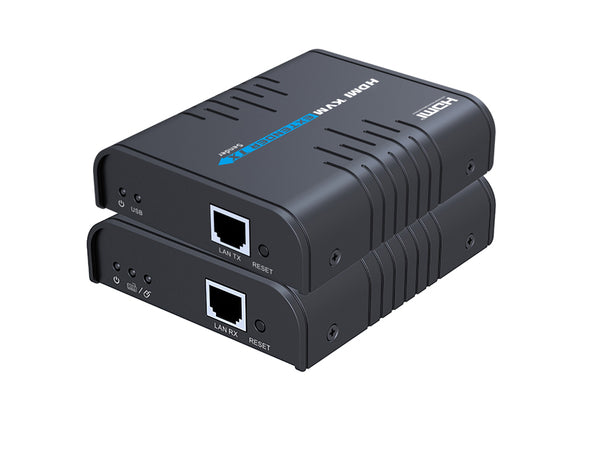

Model：LKV373KVM
This HDMI KVM EXTENDER, is made up of a transmitter unit and a receiver unit. The HDMI signal can be extended up to 120 meters via network cable, and the resolution supported is up to 1080p@60Hz. It allows access to a computer system from a remote console by USB connectors(USB keyboard and mouse).
Features
- Extend HDMI signal up to 120 meters via a single network cable
2. High resolution supported is up to 1080p@60Hz
3. LED indicators, know the status of power and USB connection easily
4. Support KVM function, remote control conveniently
5. Support LAN standard 802.3 ethernet 10/100/1000Mbps
6. Compliant STP and UTP CAT5/5E/6 network cables - Aluminium alloy housing design, stable and durable
Specification
|
Model |
LKV373KVM |
|
HDMI version |
HDMI 1.3 |
|
HDCP version |
HDCP1.2 |
|
Video bandwidth |
≤ 70M bps |
|
HDMI resolution |
640*480@60Hz 800*600@60Hz 1024*768@60Hz |
|
Audio support |
PCM (44.1KHz, 48KHz) |
|
HDMI connector |
Type A ,19 pin, Female |
|
LAN connector |
RJ -45 |
|
Operation temperaure |
0℃〜50℃ |
|
Relative humidity |
10-95% (Noncondensing) |
|
Power supply |
5V/1A*2pcs |
|
Power Consumption |
TX< 3.5w RX< 3.5w |
|
Dimensions |
109.6(L)x89.5(w)x26.3(H)mm*2pcs |
|
Weight |
TX:160g RX:170g |
|
Color |
black |
